AN4 AN6 AN8 AN10 AN12 AN16 Stainless Steel Braided PTFE Fuel Line Oil Hose for Racing Street Vehicles Boats

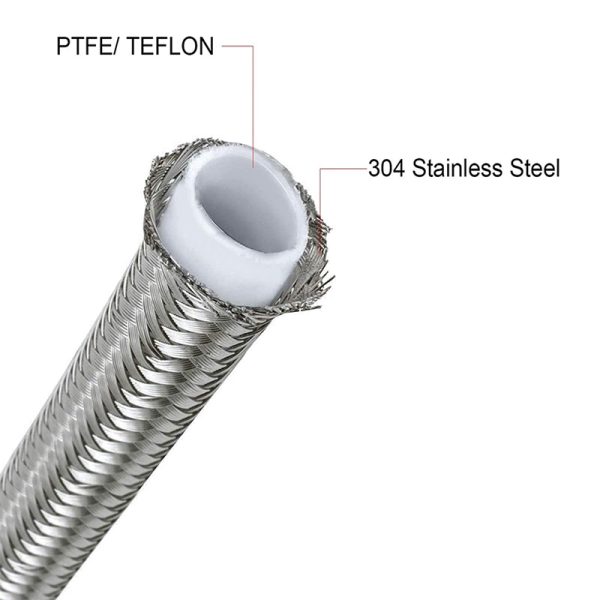

  • Quality 304 Stainless steel wire reinforced and PTFE rubber
  • Work to most fluid including the oil, diesel, water, gas, fuel and E85 fuel
  • Compatible with HaoFa Racing PTFE fittings
  • Application to most street/rod car, boat, motorcycle etc
  • Available size: AN3, AN4, AN6, AN8, AN10, AN12,AN16, AN20

Stainless Steel Braided PTFE Hose Specifications

Item I.D.(mm) O.D.(mm) W.P. (psi) B.P. (psi) Min.b.r. (mm) Temperature(min  max)
-3 3.56 6.35 4000 12000 50.80 -60℃~260℃
-4 4.83 8 4000 12000 63.50 -60℃~260℃
-6 8.13 10.92 3000 10000 88.90 -60℃~260℃
-8 10.67 13.72 2500 8000 101.60 -60℃~260℃
-10 12.95 16 2000 6000 114.30 -60℃~260℃
-12 16.26 19.3 1000 4000 139.70 -60℃~260℃
