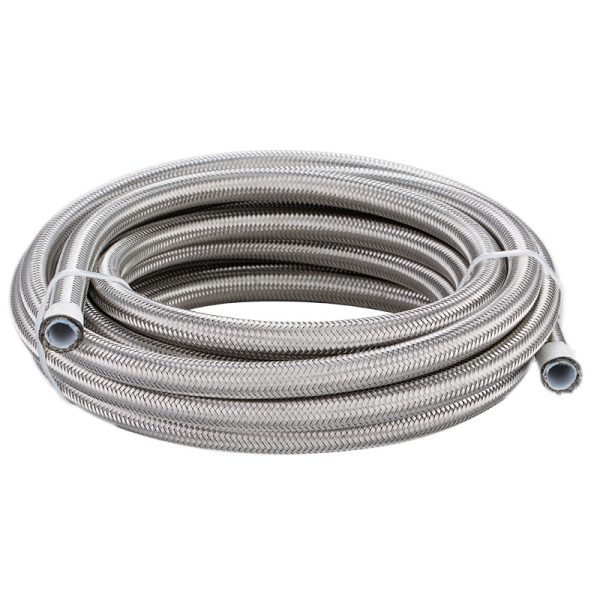

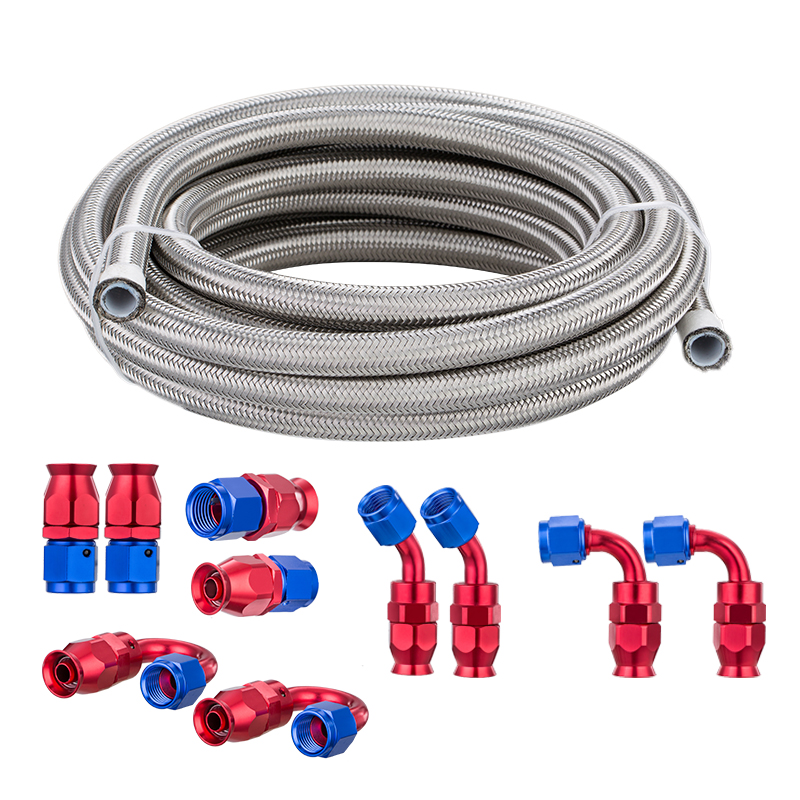

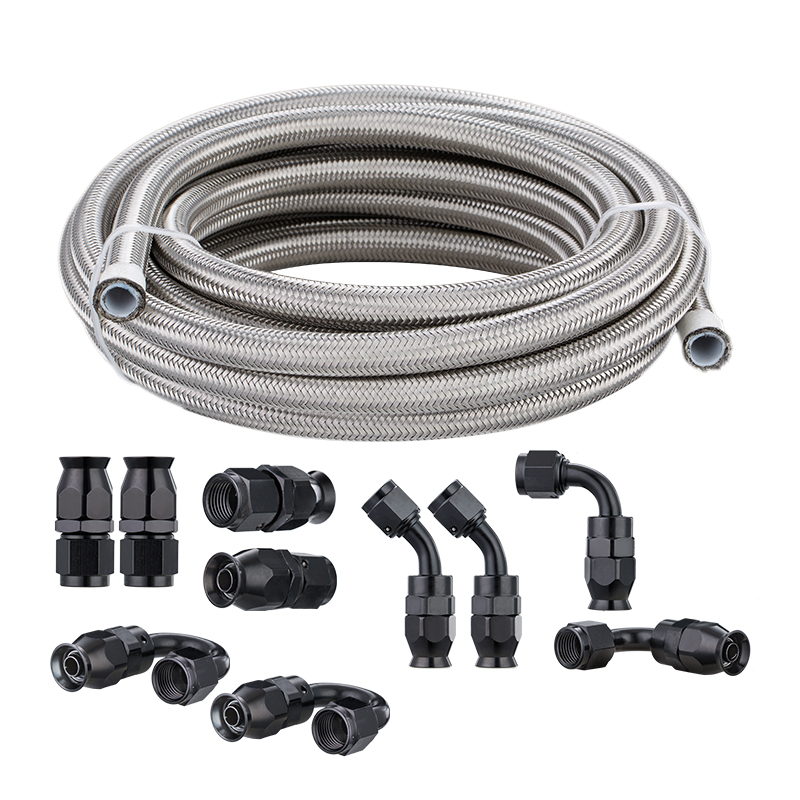

AN4 AN6 AN8 AN10 AN12 AN16 Stainless Steel Braided PTFE Hose Kit for Universal Engine Parts Cooling Parts

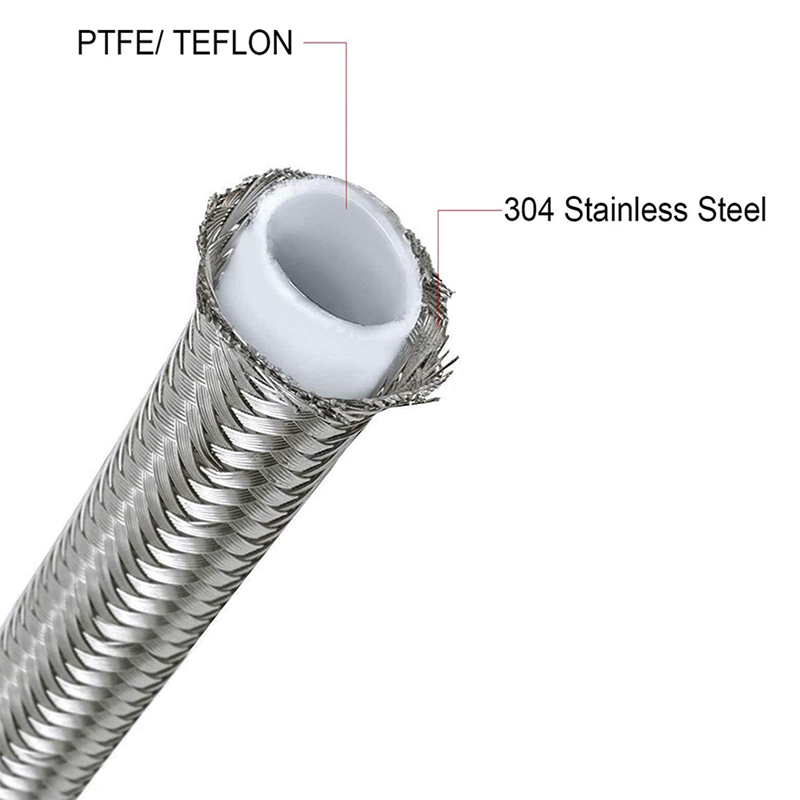

- Quality 304 Stainless steel wire reinforced and PTFE material
- Kit: 15FT hosex1, Straight fittingx4, 45 degree fittingx2, 90 degree fittingx2, 180 degree fittingx2
- Work well to most fluids including the oil, diesel, water, gas, E85 fuel etc,
- Compatible with HaoFa Racing ptfe fittings

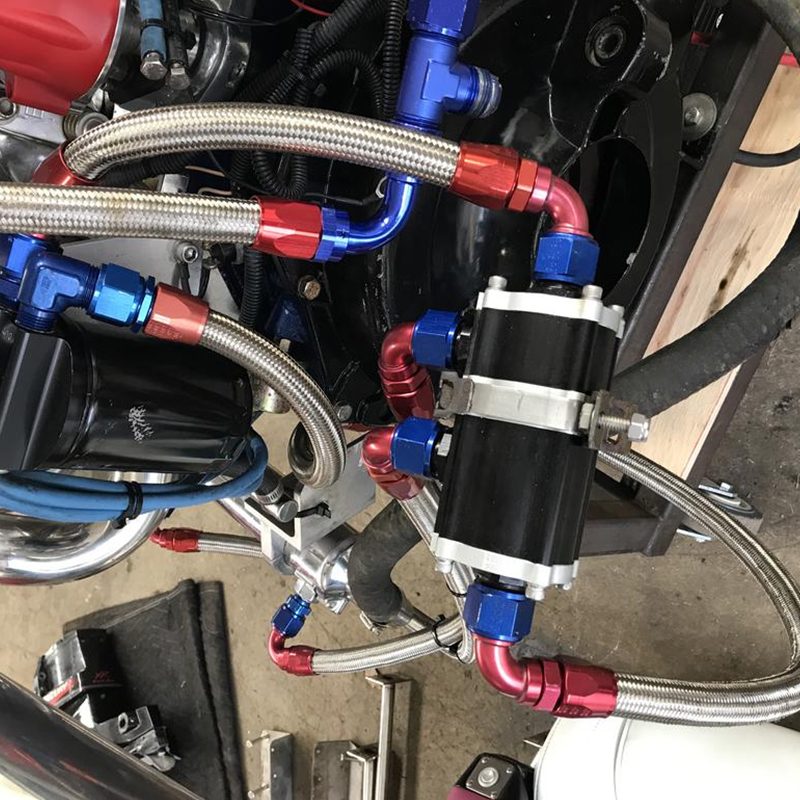

- Application to most street/rod car, boat, motorcycle etc
- Available size: AN3, AN4, AN6, AN8, AN10, AN12,AN16, AN20
Product Categories
Stainless Steel Braided PTFE Hose Kit Specifications
| Product name | Item | I.D.(mm) | O.D.(mm) | W.P.(psi) | B.P. (psi) | Min.b.r. (mm) | Temperature（min max） |
| PTFE Stainless Steel Braided Hose | -3 | 3.56 | 6.35 | 4000 | 12000 | 50.80 | -60℃～260℃ |
| -4 | 4.83 | 8 | 4000 | 12000 | 63.50 | -60℃～260℃ | |
| -6 | 8.13 | 10.92 | 3000 | 10000 | 88.90 | -60℃～260℃ | |
| -8 | 10.67 | 13.72 | 2500 | 8000 | 101.60 | -60℃～260℃ | |
| -10 | 12.95 | 16 | 2000 | 6000 | 114.30 | -60℃～260℃ | |
| -12 | 16.26 | 19.3 | 1000 | 4000 | 139.70 | -60℃～260℃ |

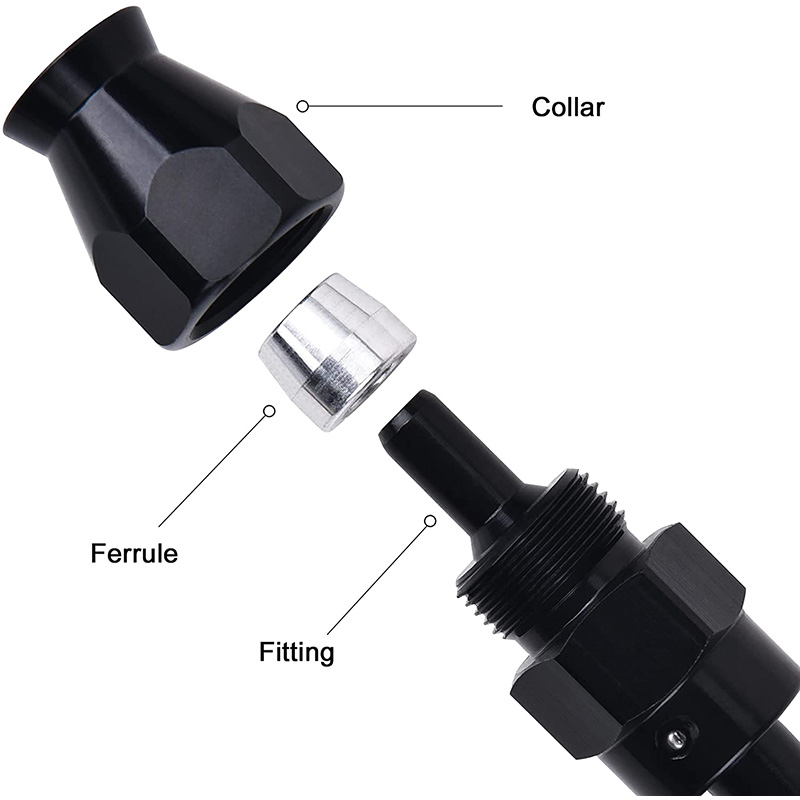

| Product name | AN | Thread | To Suit Hose |
| Straight PTFE Hose End | -3 | 3/8X24 | PTFE Hose |
| -4 | 7/16X20 | PTFE Hose | |
| -6 | 9/16X18 | PTFE Hose | |
| -8 | 3/4X16 | PTFE Hose | |
| -10 | 7/8X14 | PTFE Hose | |
| -12 | 1-1/16X12 | PTFE Hose | |
| -16 | 1-5/16X12 | PTFE Hose | |
| -20 | PTFE Hose | ||
| 45°PTFE Swivel Hose End | -3 | 3/8X24 | PTFE Hose |
| -4 | 7/16X20 | PTFE Hose | |
| -6 | 9/16X18 | PTFE Hose | |
| -8 | 3/4X16 | PTFE Hose | |
| -10 | 7/8X14 | PTFE Hose | |
| -12 | 1-1/16X12 | PTFE Hose | |
| -16 | 1-5/16X12 | PTFE Hose | |
| -20 | |||
| 90°PTFE Swivel Hose End | -3 | 3/8X24 | PTFE Hose |
| -4 | 7/16X20 | PTFE Hose | |
| -6 | 9/16X18 | PTFE Hose | |
| -8 | 3/4X16 | PTFE Hose | |
| -10 | 7/8X14 | PTFE Hose | |
| -12 | 1-1/16X12 | PTFE Hose | |
| -16 | 1-5/16X12 | PTFE Hose | |
| -20 | |||
| 180°PTFE Swivel Hose End | -3 | 3/8X24 | PTFE Hose |
| -4 | 7/16X20 | PTFE Hose | |
| -6 | 9/16X18 | PTFE Hose | |
| -8 | 3/4X16 | PTFE Hose | |
| -10 | 7/8X14 | PTFE Hose | |
| -12 | 1-1/16X12 | PTFE Hose | |
| -16 | 1-5/16X12 | PTFE Hose | |
| -20 |
